Description

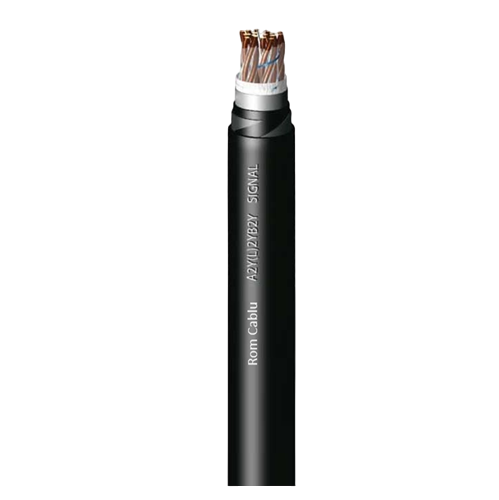

Railway Signal Cable

A-2Y(L)2YB2Y-Quad stranded (H45)

A : Outdoor cable

2Y  Insulating cover made of polyethylene (PE)

(L)2Y Laminated sheath made of polyethylene

B Armouring

2Y Outer protective sheath made of PE

S Signalling cable

(H45) Maximum mutual capacitance value at 800 Hz,45 nf/km



Application: As a railway signaling cable, in railway contro  centres, surveilance systems  and  similar  facilities, provided  that the use of special  signaling technology cables (e.g. PZB cables) is not stîpulated.



Conductor diameter                              0.9mm           1.4mm

Conductor resistance

(pair of cores) Ω/km                                   ≤ 56.6           ≤  23.4

Insulation resistance GΩxkm                   ≤ 10              ≤ 10

Mutual capacitance at 800 Hz nF/km    ≤ 45              ≤ 45

For the central quad nF/km                     ≤ 50              ≤ 50

Alternating voltage test 50 Hz

Core-core Veff                                           2500               2500

Core-screen Veff                                      2500                2500

Temperature ranges

During laying, installing °C                            -10          + 60

Before and after laying, installing °C           – 40         +60

Cable name	Cross section	Color	mm	daN	mm	mm	kg/km	kg/km
A-2Y(L)2YB2Y	1x4x0,9 S	black	12	15	90	120	27	165
A-2Y(L)2YB2Y	3x4x0,9 S	black	16	43	125	170	78	285
A-2Y(L)2YB2Y	5x4x0,9 S	black	21	71	140	190	129	425
A-2Y(L)2YB2Y	7x4x0,9 S	black	22	98	155	210	184	505
A-2Y(L)2YB2Y	10x4x0,9 S	black	25	136	180	240	260	665
A-2Y(L)2YB2Y	14x4x0,9 S	black	28	186	200	270	362	825
A-2Y(L)2YB2Y	20x4x0,9 S	black	30	257	225	300	515	1060
A-2Y(L)2YB2Y	30x4x0,9 S	black	37	366	270	360	769	1505
A-2Y(L)2YB2Y	40x4x0,9 S	black	39	468	295	390	1024	1860



A-2Y(L)2YB2Y  x1,4
Cablename	Crosssection	Color	mm	daN	mm	mm	kg/km	kg/km
A-2Y(L)2YB2Y	1x4x1,4S	black	15	35	105	140	63	255
A-2Y(L)2YB2Y	3x4x1,4S	black	22	101	155	210	186	495
A-2Y(L)2YB2Y	5x4x1,4S	black	26	164	180	240	310	715
A-2Y(L)2YB2Y	7x4x1,4S	black	28	226	195	260	437	885
A-2Y(L)2YB2Y	10x4x1,4S	black	32	308	240	320	621	1210
A-2Y(L)2YB2Y	14x4x1,4S	black	37	412	280	370	868	1575
A-2Y(L)2YB2Y	20x4x1,4S	black	43	563	315	420	1237	2095
A-2Y(L)2YB2Y	30x4x1,4S	black	50	781	370	490	1853	2980
A-2Y(L)2YB2Y	40x4x1,4S	black	5ó	963	420	560	2469	3805

Da     Outer diameter

MKO Tensile strength (during installation)

RSP   Bending radius, Axed installation

RSPP Bending radius, repeated

Cu     Copper No.

T       Total weight
