Description

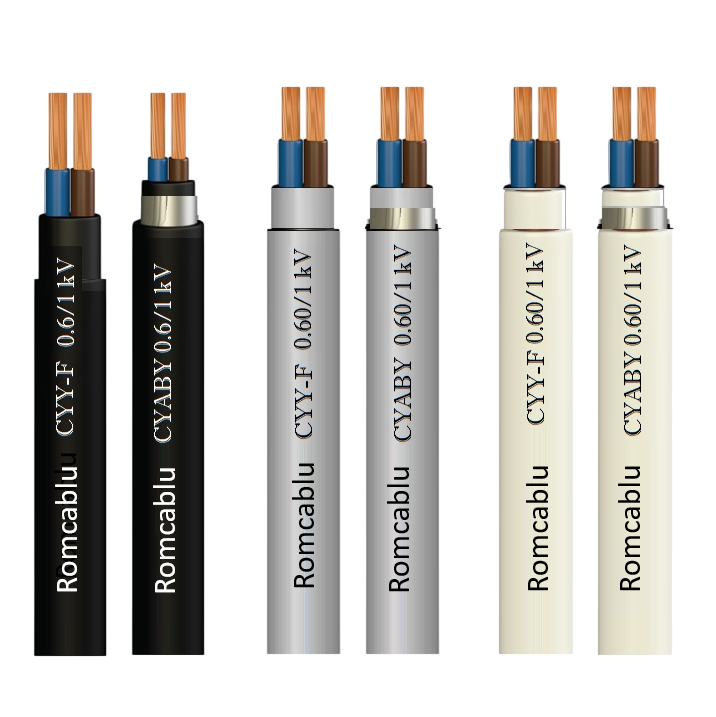

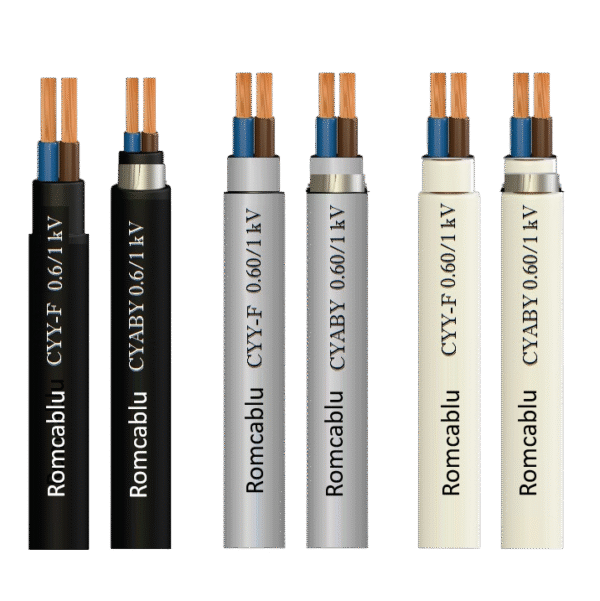

| CYY-F | |||||||
| Cabluri de energie | Power cable | |||||||
| Constructie | STANDARD SR CEI 60502-1 : 2006 | Construction | |||||
| 1.Conductor de cupru unifilar clasa 1, sau multifilar clasa 2 | SR CEI 60228 | 1. Solid or multiwire copper conductor , | |||||
| 2.Izolatie din PVC(Conductoarele izolate sunt rasucite concentric impreuna) | tip ST2 ( SR CEI 60502) | 2. PVC insulation(Insulated conductors are twisted concentrically together) | |||||
| 3.Umplutura , | din amestec de PVC | 3. Filler , | |||||
| 4.Manta exterioara din PVC | tip ST2 ( SR CEI 60502) | 4.Outer PVC sheath | |||||
| Specificatia tehnica | Technical specification | ||||||
| Identificare conductori conf | VDE 0293, HD 308 | Core identification acc. To | |||||
| Rezistenta la propagarea flacarii : | SR EN 60332-3-24:2010 | Flame propagation resistance: | |||||
| Tensiunea nom.: | 0,6/1 KV | Rated voltage: | |||||
| Tensiunea de încercare 5 min pe fiecare conduct. | 8400Vdc | Test voltage 5 min on each Conduct.. | |||||
| Temperatura mediului ambiant la pozare | +5 °C ÷ +50 °C | Operating temperature to pose | |||||
| Temperatura mediului ambiant la exploatare | -33 °C ÷ +70 °C | Ambient temperature at operation | |||||
| Temperatura a conductoarelor in functionare normala | Maximum +90 °C | Temper. of conductors in normal operation | |||||
| Raza minima de curbura | 20 x Dia.exterior of cablu(Cable) | Minimum bending radius | |||||
| Culoarea mantalei: neagră, gri | Colour of sheath: black, Grey | ||||||
| Utilizare:in instalatii fixe exterioare ingropate in pamant sau sub tencuiala. | Use: for fixed outdoor installations in ground or in concrete. | ||||||
| Ambalare:colaci de 100, tamburi din lemn. | Standard packing: coils 100, drums, one-way reels | ||||||
| Acest produs este conform cu Directiva de Joasă Tensiune a Parlamentului European si a Consiliului UE: „ Low- Voltage Directive 2014/35/UE” ; | |||||||
| Cores no x cross-section | Forma Conductor shape |
Grosime izolatie Insulation thickness (mm) | Grosime manta Outer sheath thick.(mm) |
Diametru exterior Outer diameter (mm) | Greutate cable Cable weight (kg/km) | Rezistenta Max. conductor (ohm/km) | Sarcina Current carrying Capacity (A) |
| 1X1.5 | ru | 0.8 | 1.4 | 5.7 | 51 | 12.1000 | 23 |
| 1X2.5 | ru | 0.8 | 1.4 | 6.1 | 63 | 7.4100 | 32 |
| 1X4 | ru | 1 | 1.4 | 6.9 | 87 | 4.6200 | 42 |
| 1X6 | ru | 1 | 1.4 | 7.4 | 110 | 3.0800 | 53 |
| 2X1.5 | ru | 0.8 | 1.4 | 9.3 | 133 | 12.1000 | 23 |
| 2X2.5 | ru | 0.8 | 1.4 | 10.0 | 168 | 7.4100 | 32 |
| 2X4 | ru | 1 | 1.8 | 12.8 | 273 | 4.6200 | 42 |
| 2X6 | ru | 1 | 1.8 | 13.8 | 338 | 3.0800 | 53 |
| 2X10 | ru | 1 | 1.8 | 15.3 | 452 | 1.8300 | 74 |
| 3X1.5 | ru | 0.8 | 1.4 | 9.7 | 154 | 12.1000 | 23 |
| 3X2.5 | ru | 0.8 | 1.8 | 11.8 | 233 | 7.4100 | 32 |
| 3X4 | ru | 1 | 1.8 | 13.5 | 322 | 4.6200 | 42 |
| 3X6 | ru | 1 | 1.8 | 14.5 | 406 | 3.0800 | 53 |
| 3X10 | ru | 1 | 1.8 | 16.2 | 554 | 1.8300 | 74 |
| 4X1.5 | ru | 0.8 | 1.8 | 11.7 | 219 | 12.1000 | 23 |
| 4X2.5 | ru | 0.8 | 1.8 | 12.6 | 278 | 7.4100 | 32 |
| 4X4 | ru | 1 | 1.8 | 14.5 | 390 | 4.6200 | 42 |
| 4X6 | ru | 1 | 1.8 | 15.7 | 496 | 3.0800 | 53 |
| 4X10 | ru | 1 | 1.8 | 17.5 | 685 | 1.8300 | 74 |
| 5X1.5 | ru | 0.8 | 1.8 | 12.5 | 256 | 12.1000 | 21 |
| 5X2.5 | ru | 0.8 | 1.8 | 13.6 | 327 | 7.4100 | 30 |
| 5X4 | ru | 1 | 1.8 | 15.7 | 464 | 4.6200 | 42 |
| 5X6 | ru | 1 | 1.8 | 17.0 | 595 | 3.0800 | 53 |
| ru – conductor rotund unifilar | round solid conductor | |||||||
| rm – conductor rotund multifilar | round stranded conductor | |||||||
| sm –conductor sector multifilar | stranded sector shaped conductor | |||||||
