| CYKY | |||||||||
| Cabluri izolate cu PVC pentru instalatii fixe | Power cable for fixed installations | |||||||||
| Constructie | Construction | ||||||||

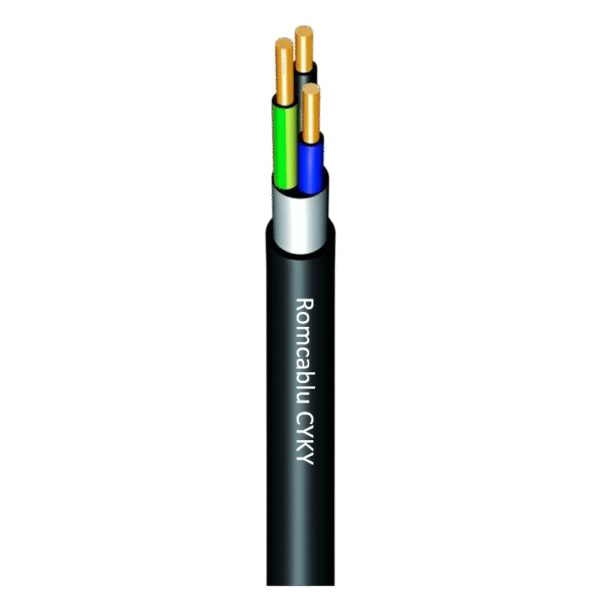

| 1. Conductor din cupru, clasa 1 2. Izolatie din PVC 3. Strat umplutura 4. Manta din PVC |
1. Copper conductor, class 1 2. PVC insulation 3. Filler layer 4. PVC sheath |
||||||||
| Specificatia tehnica | Technical specification | ||||||||
| Tensiunea nom.: 450/750 V | Rated voltage: 450/750 V | ||||||||
| Temperatura minima: | Operating temperature: min. –40 °C max. +70 °C | ||||||||
| – instalare si manipulare: +4 °C | Min. perm. temp. | ||||||||
| – depozitare: –40 °C | – with installation and handling: +4 °C | ||||||||
| Temperatura max. de depozitare: +40 °C | – storage: –40 °C | ||||||||
| Temperatura de lucru: min. –40 °C max. +70 °C | Max. perm. storage temp.: +40 °C | ||||||||
| Utilizare: in instalatii fixe exterioare ingropate in | Application: For fixed installation in open air, | ||||||||
| pamant sau sub tencuiala, in incaperi , pentru | in the ground and in the concrete, for indoor | ||||||||
| instalatii fixe si sub tencuiala. | installation and installation under plaster. | ||||||||
| Culoarea mantalei: negru | Colour of sheath: black | ||||||||
| Standard de fabricatie: ST 104 | Manufactured according to: ST 104 | ||||||||
| Identificare conductori conf. VDE 0293, HD 308 | Core identification acc. to VDE 0293, HD 308 | ||||||||
| Ambalare: colaci de 100, tamburi de lemn. | Standard packing: coils 100 m, drums, one-way | ||||||||
| Rezistenta la flacara conf. IEC 60332-1. | reels 500 m | ||||||||
| Cablurile sint rezistente la radiatii UV | Flame retardant according to IEC 60332-1. | ||||||||
| Cables are resistant to UV radiation | |||||||||
| Nr. conductori x sectiunea Cores no x cross-section (nxmm2) | Forma conductor Conductor shape |
Grosime izolatie Insulation thickness (mm) | Grosime manta Outer sheath thickness (mm) | Diametru exterior Outer diameter (mm) | Greutate Weight (kg/km) | Rezistenta max. Max. conductor resistance (ohm/km) |
Sarcina Current carrying capacity (A) | ||
| 2X1.5 | ru | 0.7 | 1.0 | 8.1 | 107 | 12.1000 | 23.00 | ||
| 2X2.5 | ru | 0.8 | 1.0 | 9.3 | 150 | 7.4100 | 32.00 | ||
| 2X4 | ru | 0.9 | 1.0 | 10.6 | 208 | 4.6200 | 42.00 | ||
| 2X6 | ru | 1 | 1.0 | 12.2 | 287 | 3.0800 | 53.00 | ||
| 3X1.5 | ru | 0.7 | 1.0 | 8.5 | 126 | 12.1000 | 23.00 | ||
| 3X2.5 | ru | 0.8 | 1.0 | 9.8 | 179 | 7.4100 | 32.00 | ||
| 3X4 | ru | 0.9 | 1.0 | 11.4 | 259 | 4.6200 | 42.00 | ||
| 3X6 | ru | 1 | 1.2 | 13.4 | 365 | 3.0800 | 53.00 | ||
| 3X10 | ru | 1 | 1.2 | 15.1 | 518 | 1.8300 | 74.00 | ||
| 3X16 | ru | 1 | 1.4 | 17.6 | 771 | 1.1500 | 80.00 | ||
| 4X1.5 | ru | 0.7 | 1.0 | 9.2 | 153 | 12.1000 | 23.00 | ||
| 4X2.5 | ru | 0.8 | 1.0 | 10.2 | 153 | 12.1000 | 23.00 | ||
| 4X4 | ru | 0.9 | 1.0 | 12.5 | 320 | 4.6200 | 4.6200 | 42.00 | |
| 4X6 | ru | 1 | 1.2 | 14.6 | 452 | 3.0800 | 3.0800 | 53.00 | |
| 4X10 | ru | 1 | 1.2 | 16.5 | 650 | 1.8300 | 1.8300 | 74.00 | |
| 4X16 | ru | 1 | 1.4 | 19.3 | 972 | 1.1500 | 1.1500 | 80.00 | |
| 5X1.5 | ru | 0.7 | 1.0 | 10.0 | 183 | 12.1000 | 12.1000 | 21.00 | |
| 5X2.5 | ru | 0.8 | 1.0 | 11.8 | 272 | 7.4100 | 7.4100 | 30.00 | |
| 5X4 | ru | 0.9 | 1.2 | 14.0 | 401 | 4.6200 | 4.6200 | 42.00 | |
| 5X6 | ru | 1 | 1.2 | 15.9 | 548 | 3.0800 | 3.0800 | 53.00 | |
| 5X10 | ru | 1 | 1.2 | 18.1 | 793 | 1.8300 | 1.8300 | 74.00 | |
| 5X16 | ru | 1 | 1.4 | 21.1 | 1189 | 1.1500 | 1.1500 | 80.00 | |
| 7X1.5 | ru | 0.7 | 1.0 | 10.8 | 225 | 12.1000 | 12.1000 | 12.00 | |
| 7X2.5 | ru | 0.8 | 1.2 | 13.2 | 350 | 7.4100 | 7.4100 | 16.00 | |
| 7X4 | ru | 0.9 | 1.2 | 15.2 | 501 | 4.6200 | 4.6200 | 28.00 | |
| 12X1.5 | ru | 0.7 | 1.2 | 14.6 | 404 | 12.1000 | 12.1000 | 10.00 | |
| 12X2.5 | ru | 0.8 | 1.2 | 17.1 | 595 | 7.4100 | 7.4100 | 13.00 | |
| 12X4 | ru | 0.9 | 1.4 | 20.2 | 883 | 4.6200 | 4.6200 | 25.00 | |
| 19X1.5 | ru | 0.7 | 1.2 | 16.9 | 570 | 12.1000 | 12.1000 | 9.00 | |
| 19X2.5 | ru | 0.8 | 1.4 | 20.3 | 871 | 7.4100 | 7.4100 | 11.00 | |
| 19X4 | ru | 0.9 | 1.6 | 24.0 | 1295 | 4.6200 | 4.6200 | 23.00 | |
| 24X1.5 | ru | 0.7 | 1.4 | 20.0 | 778 | 12.1000 | 12.1000 | 7.00 | |
| 24X2.5 | ru | 0.8 | 1.6 | 24.0 | 1184 | 7.4100 | 7.4100 | 10.00 | |
| 24X4 | ru | 0.9 | 1.6 | 28.0 | 1724 | 4.6200 | 4.6200 | 21.00 | |
| 30X1.5 | ru | 0.7 | 1.6 | 21.5 | 918 | 12.1000 | 12.1000 | 7.00 | |
| 30X2.5 | ru | 0.8 | 1.6 | 25.3 | 1372 | 7.4100 | 7.4100 | 10.00 | |
| 30X4 | ru | 0.9 | 1.6 | 29.6 | 2011 | 4.6200 | 4.6200 | 19.00 | |
| ru – conductor rotund unifilar | round solid conductor | |||||||||
| rm – conductor rotund multifilar | round stranded conductor | |||||||||
| sm –conductor sector multifilar | stranded sector shaped conductor | |||||||||
