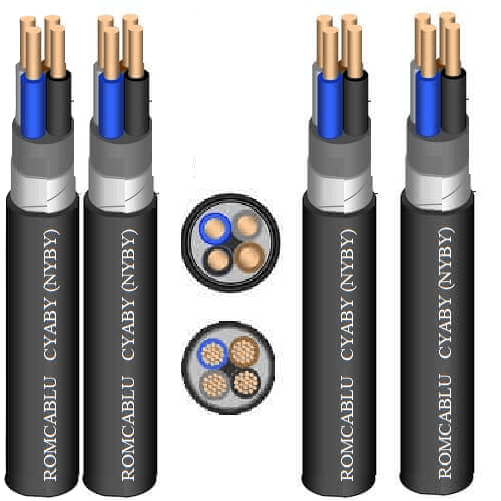

CYABY Cabluri Cupru masiv armate
| Constructie |
| 1.Conductor de cupru unifilar clasa 1, sau multifilar clasa 2 |
| 2.Izolatie din PVC |
| 3.Umplutura |
| -Ecran din banda de cupru |
| -Manta interioara din PVC |
| -Amatura din banda de otel |
| 4.Manta exterioara din PVC |
| Specificatia tehnica |
| Tensiunea nom.: 0,6/1 KV |
| Temperatura de lucru: min. –40 °C max. +70 °C |
| Temperatura minima: |
| – instalare si manipulare: +4 °C, – instalare si manipulare: +4 °C, |
| – depozitare: –40 °C, de depozitare: +40 °C |
| Standard de fabricatie: SR CEI 60502-1 |
| Identificare conductori conf. HD 308 |
| Utilizare: in instalatii fixe exterioare ingropate in pamant sau sub tencuiala. |
| Culoarea mantalei: negru, gri |
| Ambalare: colaci de 100, tamburi din lemn. |
| Rezistenta la propagarea flacarii conf. SR CEI 60332.1 |
Grosime izolatie (mm) Tip conductor Grosime manta mm Grosime manta interna mm Grosime manta exteriora mm Rezistenta max.(ohm/km) Diametru ext. (mm) Greutate (kg/km)
| Grosime izolatie (mm) | Tip conductor | Grosime manta mm | Grosime manta interna mm | Grosime manta exteriora mm | Rezistenta max.(ohm/km) | Diametru ext. (mm) | Greutate (kg/km) |
| 2×1.5 | re | 0.8 | 1.2 | 1.8/1.24 | 12.1 | 12.2 | 276 |
| 2×2.5 | re | 0.8 | 1.2 | 1.8/1.24 | 7.41 | 13.0 | 323 |
| 2×4 | re | 1.0 | 1.2 | 1.8/1.24 | 4.61 | 14.7 | 448 |
| 2×6 | re | 1.0 | 1.2 | 1.8/1.24 | 3.08 | 15.9 | 528 |
| 3×1.5 | re | 0.8 | 1.2 | 1.8/1.24 | 12.1 | 12.6 | 305 |
| 3×2.5 | re | 0.8 | 1.2 | 1.8/1.24 | 7.41 | 13.5 | 393 |
| 3×4 | re | 1.0 | 1.2 | 1.8/1.24 | 4.61 | 15.4 | 507 |
| 3×6 | re | 1.0 | 1.2 | 1.8/1.24 | 3.08 | 16.7 | 607 |
| 4×1.5 | re | 0.8 | 1.2 | 1.8/1.24 | 12.1 | 13.4 | 378 |
| 4×2.5 | re | 0.8 | 1.2 | 1.8/1.24 | 7.41 | 14.4 | 450 |
| 4×4 | re | 1.0 | 1.2 | 1.8/1.24 | 4.61 | 16.5 | 590 |
| 4×6 | re | 1.0 | 1.2 | 1.8/1.24 | 3.08 | 17.9 | 715 |
| 5×1.5 | re | 0.8 | 1.2 | 1.8/1.24 | 12.1 | 14.2 | 427 |
| 5×2.5 | re | 0.8 | 1.2 | 1.8/1.24 | 7.41 | 15.3 | 514 |
| 5×4 | re | 1.0 | 1.2 | 1.8/1.24 | 4.61 | 17.7 | 682 |
| 5×6 | re | 1.0 | 1.2 | 1.8/1.24 | 3.08 | 19.3 | 832 |
